- Size: 130
- Place of Origin: China Shandong
- Brand Name: PECIAL TRAILER
- Model Number: GJC9402GFL
- Weight: 11200.000 kg
Model Number | GJC9380GSN,GJC9403GFL,GJC9401GFL,GJC9402GFL,GJC9400GFL |

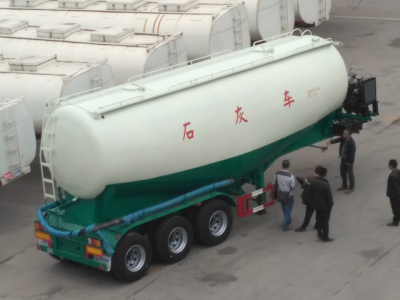

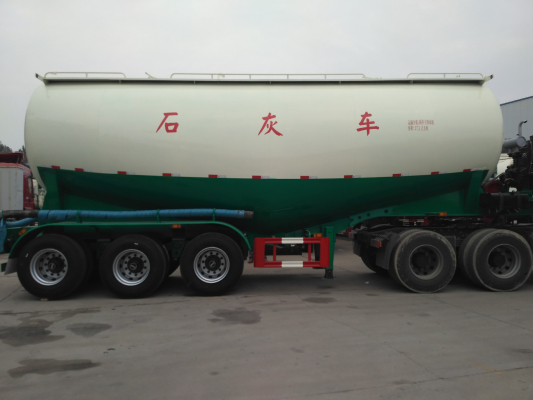

Product type | Bulk Cement Semi Trailer |
Overall Length | 9500mm-13500mm |
Overall Wide | 2500mm |
Overall Height | 3800mm-3990mm |
Tare Weight | About 7500KGS-15000KGS |
Total Volume | 27m³-85m³ |
Tanker Body | |
Shape | Optional (One Silo with V type or two,three Silo Design) |
Tanker Body | 4mm or 5mm or 6mm/Q235B carbon steel |
End Plate | 5mm or 6mm/Q235B carbon steel |
Manhole Cover | 2 or 3 pieces,Carbon steel diameter 500mm |
Discharging Pipe | 3 or 4 inch rubber hose,1 pcs,6m/each |
Discharging Valve | Diameter is 3 or 4 inch |
Rated work Pressure | 0.2MPa |
Diesel Engine | WEICHAI 4100/4102/4105 |
Air Compressor | WUHU 12 m³/14m³double-cylinder |
Cat Walk | With (common or special design) |
Chassis | |
Axle | 2 or 3 axles,13T/16T,YANGJIA/FUWA/BPW Brand |
Main Beam | T700 carbon steel ,Welding Design |
King pin | 2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Leaf Spring | 90mm(Width) x13mm(Thickness) x 10 layers,optional |
Support Leg | 28T External Single Action,FUWA/JOST brand |
Brake Chamber | WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand |
Tire | 8.25R20/10.00R20/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand |
Wheel Rim | 9.00-22.5/7.5-20/8.00-20/8.5-20 |
ABS system | Optional |
Electrical system | 24V, 7 wire harness |
Light | LED light (Special for export market) |
Painting | Complete chassis san blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice |
Tool Box | One standard tool box |
Shipping Terms | By Bulk Cargo , RORO or 40HQ Containers |
