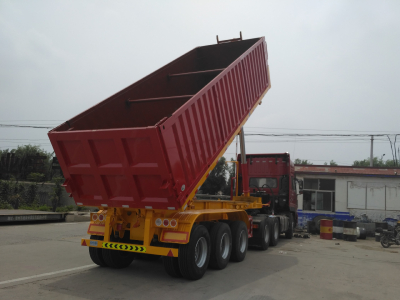

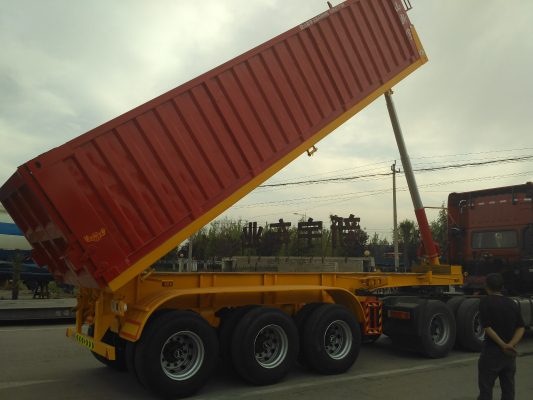

3 axle rear dump semi trailer of truck

3 axle rear dump semi trailer of truck

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 800 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Unit/Units
Verified Supplier Liangshan Xinyu Vehicle
| Factory
Experience:2006-09-30
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  120
  • Place of Origin:  China Shandong
  • Brand Name:  PECIAL TRAILER
  • Model Number:  GJC9401ZZX
  • Weight: 8000.000 kg

Weight:




Tare Weight

9000kg--40000kg


Loading Capacity

30T--100T


Axle Weight Load

13T-16T

Specification:



Axle number

2,3 or 4


Axle Brand

Optional upon choice


Suspension

Mechanical suspension Or Air suspension


King Pin

2" or 3.5" traction pin


Dimensions (LxWxH)

10000-20000mm×2500-3200mm x3700-3980mm


Support legs

28T


Wheel Rim

9.00-22.5 Or 8.0-20/8.5-20


Wheelbase

7180/6680/6260 1310 1310 1310mm


Steel Spring

8/10/12 pieces


Drawing

Including


Landing Gear

Manual operating, Heavy duty landing gear (Brand Optional upon chioce)


Accessories

Tow standard tool box/four trailer spare wheel carrier


Light

Tail lamp with turn signal, brake light & reflector, side lamp etc.


Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Tire:




Tire spe.

12R22.5 Or11.00R20/12.00R20 Vacuum tire


Number of Tire

8 or 12 or 16 pieces


Spare Tire Carriers

2 pieces

Frame:



Main beam

The height of the beam is 500-550mm;

Upper plate:10-20mm;Down plate is 12-24mm;Middle plate is 6-14mm.


Trailer body

5mm steel plate, front and back head made of 6mm steel plate

the shape can be column or TV square shape

Brake:




Brake brand

Optional upon choice


Brake Chamber

Six big chamber( Brand Optional upon choice )


Brake system

Dual Line Brake system (ABS Optional upon choice)


  • Size:  120
  • Place of Origin:  China Shandong
  • Brand Name:  PECIAL TRAILER
  • Model Number:  GJC9401ZZX
  • Weight: 8000.000 kg

Weight:




Tare Weight

9000kg--40000kg


Loading Capacity

30T--100T


Axle Weight Load

13T-16T

Specification:



Axle number

2,3 or 4


Axle Brand

Optional upon choice


Suspension

Mechanical suspension Or Air suspension


King Pin

2" or 3.5" traction pin


Dimensions (LxWxH)

10000-20000mm×2500-3200mm x3700-3980mm


Support legs

28T


Wheel Rim

9.00-22.5 Or 8.0-20/8.5-20


Wheelbase

7180/6680/6260 1310 1310 1310mm


Steel Spring

8/10/12 pieces


Drawing

Including


Landing Gear

Manual operating, Heavy duty landing gear (Brand Optional upon chioce)


Accessories

Tow standard tool box/four trailer spare wheel carrier


Light

Tail lamp with turn signal, brake light & reflector, side lamp etc.


Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Tire:




Tire spe.

12R22.5 Or11.00R20/12.00R20 Vacuum tire


Number of Tire

8 or 12 or 16 pieces


Spare Tire Carriers

2 pieces

Frame:



Main beam

The height of the beam is 500-550mm;

Upper plate:10-20mm;Down plate is 12-24mm;Middle plate is 6-14mm.


Trailer body

5mm steel plate, front and back head made of 6mm steel plate

the shape can be column or TV square shape

Brake:




Brake brand

Optional upon choice


Brake Chamber

Six big chamber( Brand Optional upon choice )


Brake system

Dual Line Brake system (ABS Optional upon choice)
