- Size: 120
- Place of Origin: China Shandong
- Brand Name: PECIAL TRAILER
- Model Number: GJC9400TDP
- Weight: 9500.000 kg
Model Number | GJC9350TDP,GJC9400TDP,GJC9401TDP,GJC9402TDP |

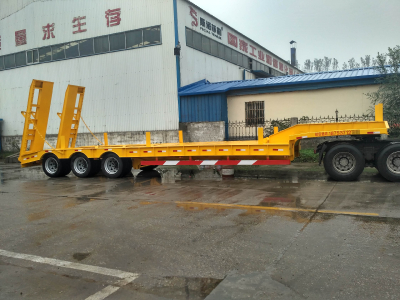

Product type | Low bed Semi Trailer |
Tare weight | About 8.5T-13T |
Dimension | 12000mm-18000mm*2500mm-3500mm*3110mm Please indicate the working platform height and length. |
Loading capacity | 40T-100T |
Main beam | Height:450mm-520mm,Thickness: upper plate is 14mm-25mm,middle plate is 8mm-12mm,lower plate is 16mm-25mm,Material is T700 Steel |
Side beam | 16mm-25mm channel steel (Material is Q345 steel) |
Base plate | 4mm checkered plate or optional |
Ladder | Manual type or Hydraulic type |
Gooseneck | For choose |
Axle | 13T/16T,YANGJIA/FUWA/BPW Brand |
King pin | 2 or 3.5 inch welding or bolt-in King pin,JOST brand/China brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Leaf Spring | 90mm(Width) x13mm(Thickness) x 10 layers,optional |
Landing Gear | 28T External Single Action,FUWA/JOST brand |
Brake Chamber | WABCO RE 6 relay valve;T30/30 T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks Or China brand |
Tire | 8.25R16/8.25R20/12R22.5/11.00R20/12.00R20,Chengshan/Shuangqian/Linglong/Triangle Brand |
Wheel Rim | 9.00-22.5/7.5-20/8.00-20/8.5-20 |
ABS system | Optional |
Electrical system | 24V, 7 wire harness |
Tool Box | One piece,1mxo.5mx0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
Spare Wheel Carrier | 2 pieces or according to the requirements of the buyer |
Lamp | LED light (especial for exporting market) |
Painting | Complete chassis san blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Color as customer choice |
Chassis name | Low Bed Truck Chassis |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |
